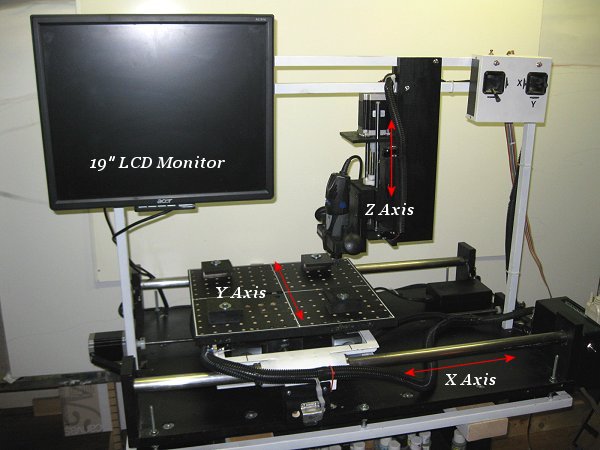

This is the second generation CNC I have designed and built.

Features:

 Welded 3/4" steel angle and is 24" W x 36" L x 24" H
    Frame
 Adjustable Bed
 13"x16" Cutting Table

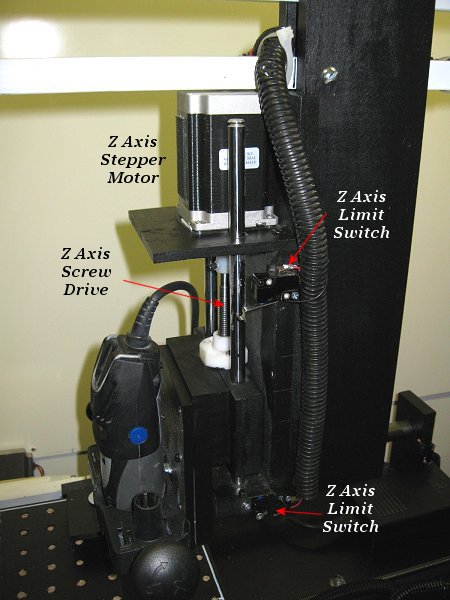

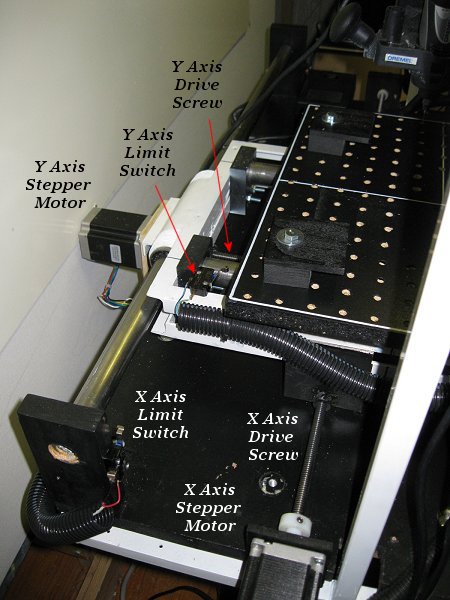

 X, Y and Z Axis Screw drive

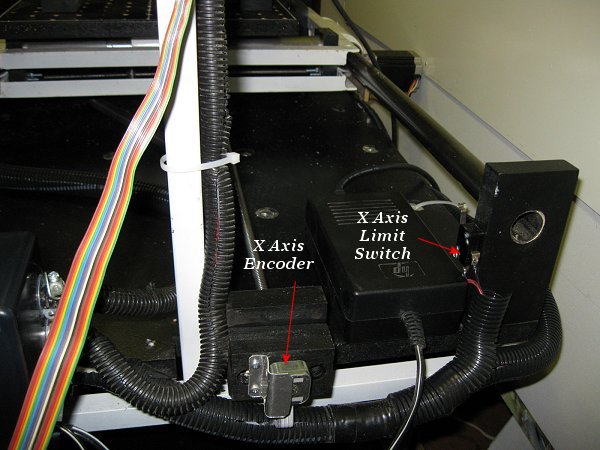

 X-Y Drive Encoders
 X,Y and Z Limit Switches

Use:

 Photo to 3D Engraving
 Engraving
 Lightweight Parts Machining
